产品明细

模块变体参数描述

Orderable Part Number	Antenna Options	In-System-Programmable Flash (Mbit)	Operating Temperature

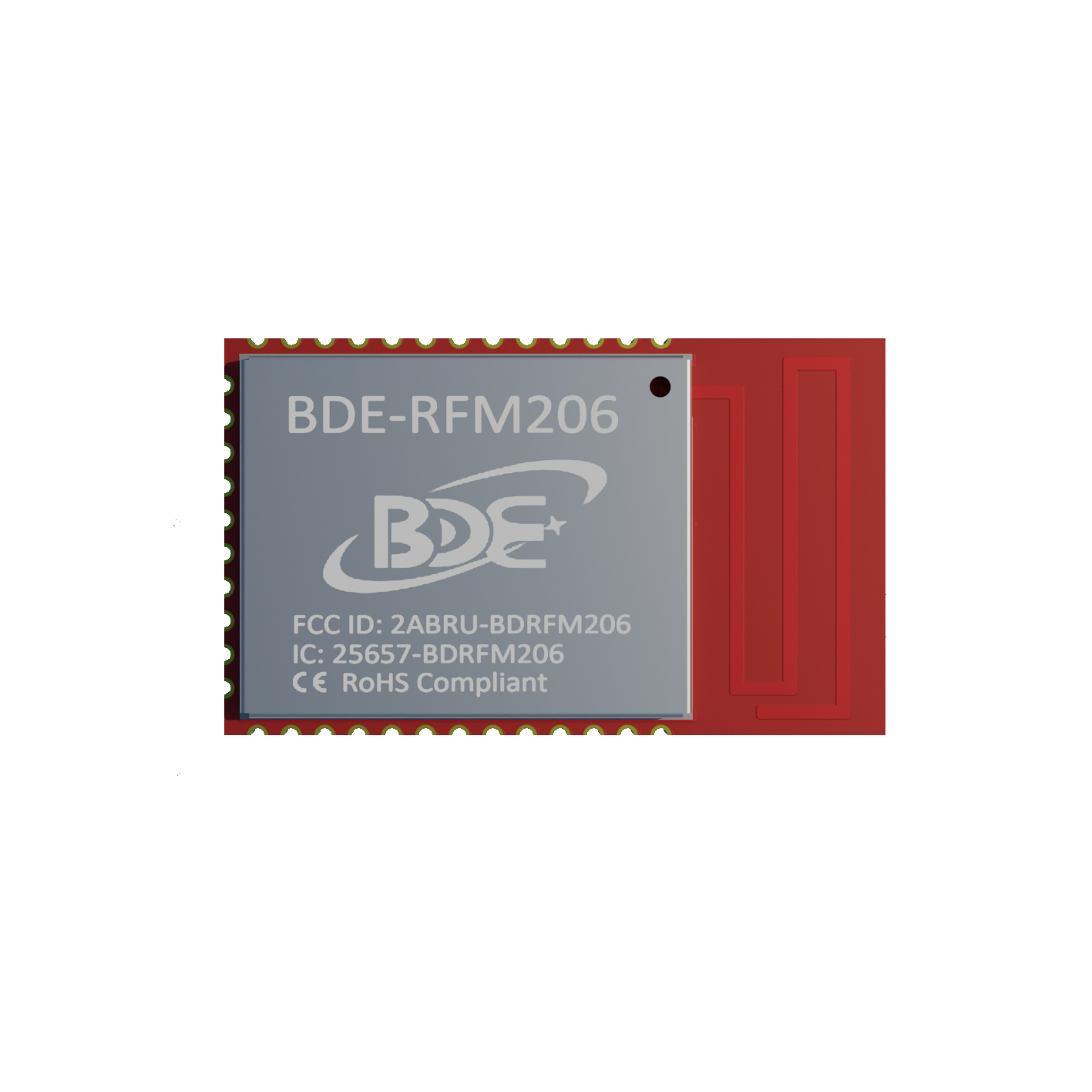

BDE-RFM206	PCB trace antenna	352	-40 °C to +85 °C

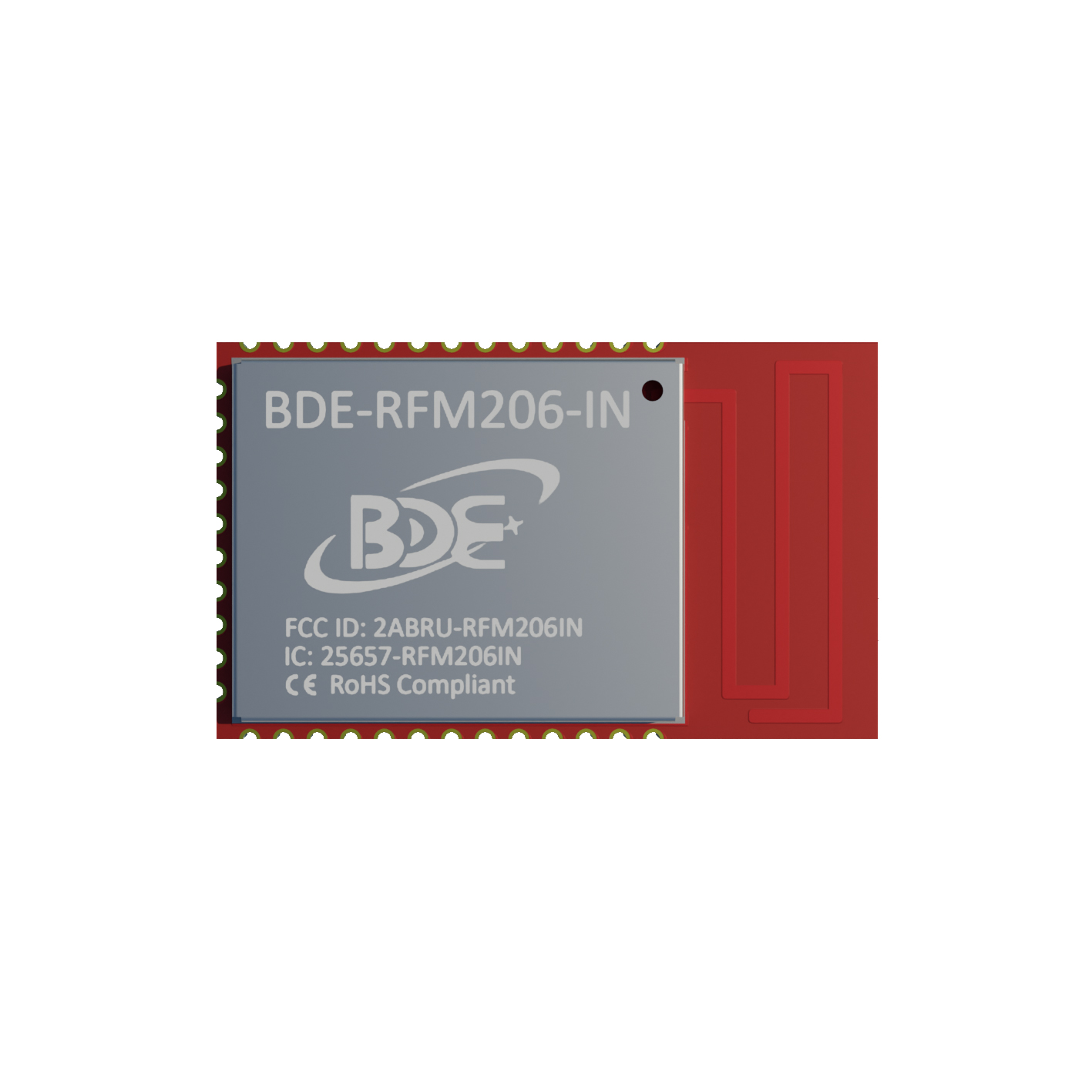

BDE-RFM206-IN	PCB trace antenna		-40 °C to +105 °C
BDE-RFM216	U.FL Connector		-40 °C to +85 °C

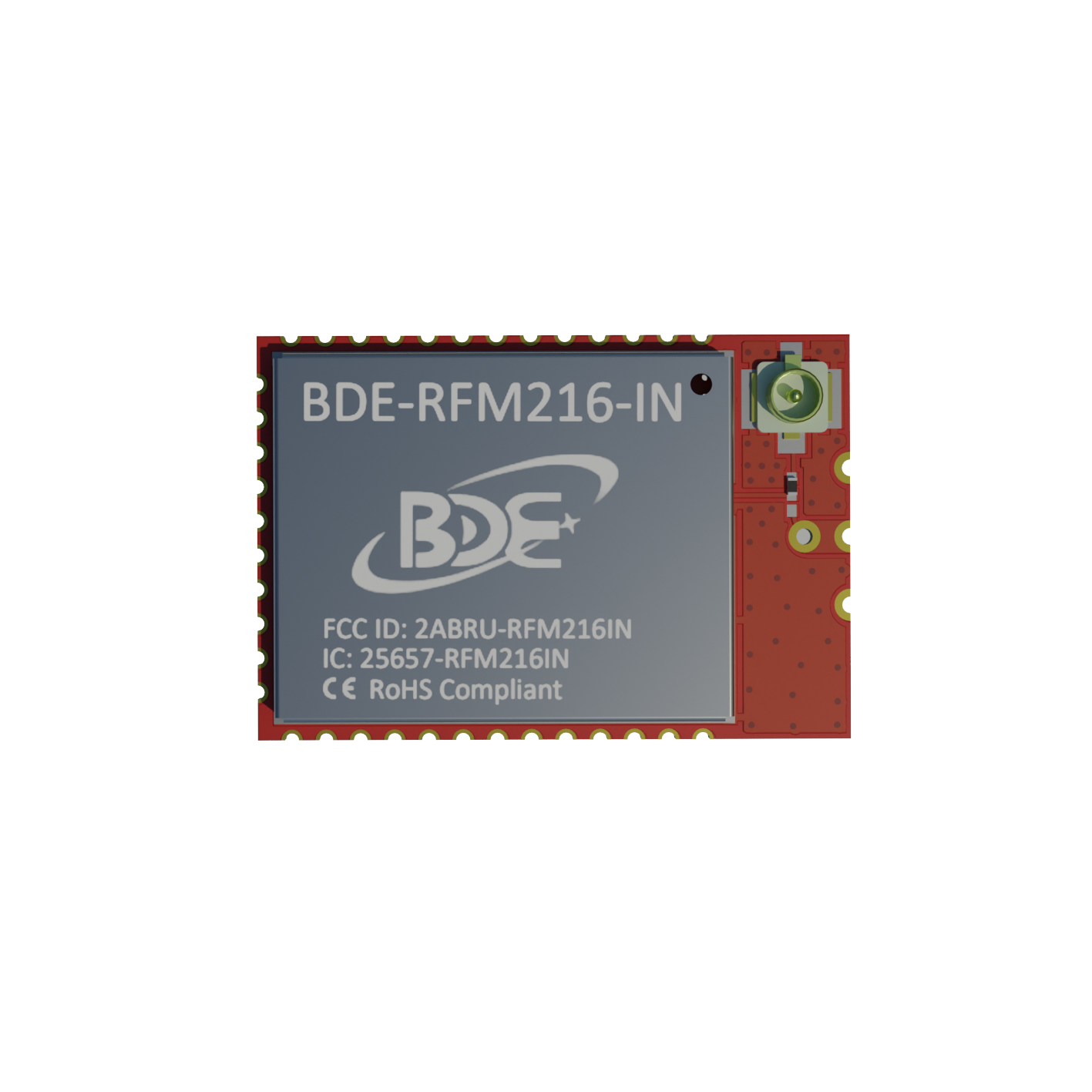

BDE-RFM216-IN	U.FL Connector		-40 °C to +105 °C

芯片组	CC1312R
协议	Sub-1G
天线类型	U.FL Connector PCB Trace Antenna
频率	Sub-1G
发射功率	14dBm
敏感度	–120 dBm for 2.5 kbps long-range mode –110 dBm at 50 kbps, 802.15.4, 868 MHz
类型	-
内存(MB)	256K
外设	I2C SPI UART I2S
工作温度	-40°C to +105°C or -40°C to +105°C
包装尺寸	22 mm x 15 mm x 2.15 mm
闪存	8K
中央处理器	CC1312R
系列状态	ACTIVE

BDE-RFM2X6X is an ultra-low power, long-range Sub-1 GHz module series targeted at low power sensors and long range applications.

BDE-RFM2X6X integrates a high performance RF core and also a powerful ARM cortex-M4F processor, which makes it suitable for certain products that need high performance MCU to deal with difficult applications.

The module supports 868 MHz and 915 MHz bands, with the maximum output power up to 14 dBm, along with its Long-Range Mode feature, the module is to be the best choice for IoT products which utilize battery supply and require long range communication.

文档

类型	标题	时间
数据手册	BDE-RFM216_Datasheet_EN_V2.0.pdf	2026-03-11
数据手册	BDE-RFM216-IN_Datasheet_EN_V1.0.pdf	2026-03-11
数据手册	BDE-RFM206-IN_Datasheet_EN_V1.0.pdf	2026-03-11
数据手册	BDE-RFM206_Datasheet_EN_V1.0.pdf	2026-03-11
