Orderable Part Number |
Antenna Options |
In-System-Programmable Flash (Mbit) |
Operating Temperature |
|

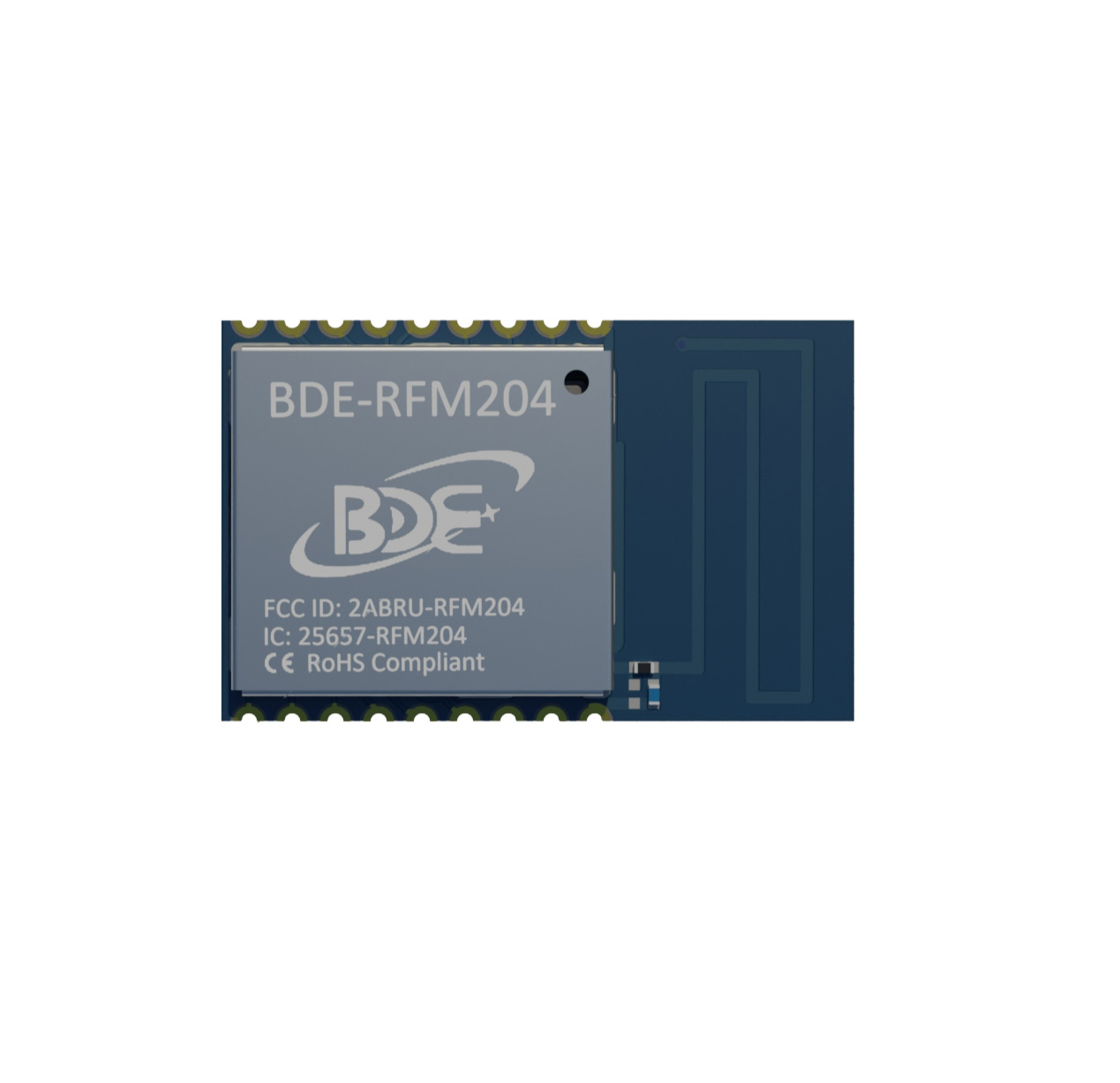

BDE-RFM204-915 |
Integrated PCB trace antenna |
128
|
-40 °C to +85 °C |
|
BDE-RFM204-868 |
|||
|

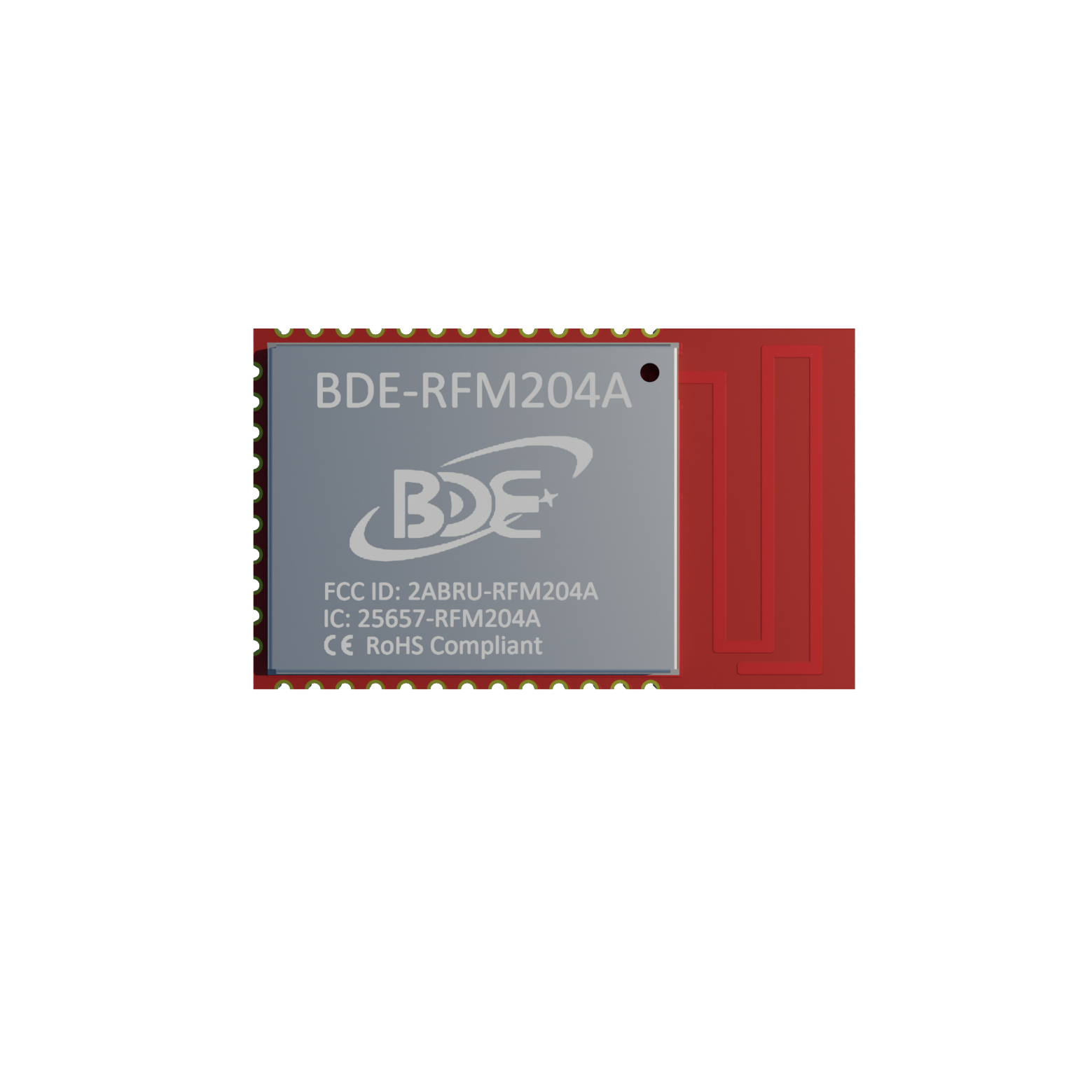

BDE-RFM204A-915 |
|||
|
BDE-RFM204A-868 |
|||
|

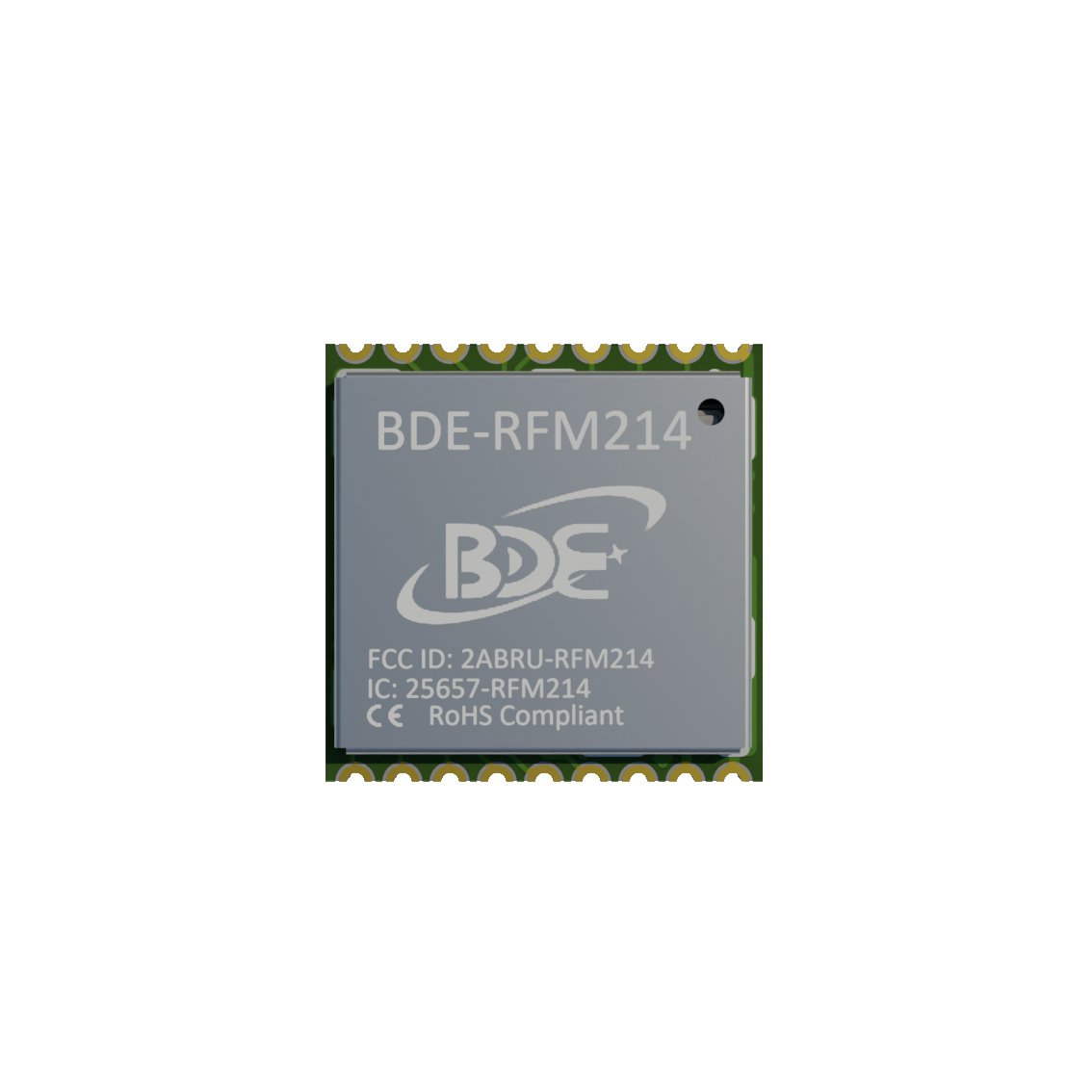

BDE-RFM214-915 |
ANT Pin |
||
|
BDE-RFM214-868 |
|||
|
BDE-RFM214-433 |
|||
|

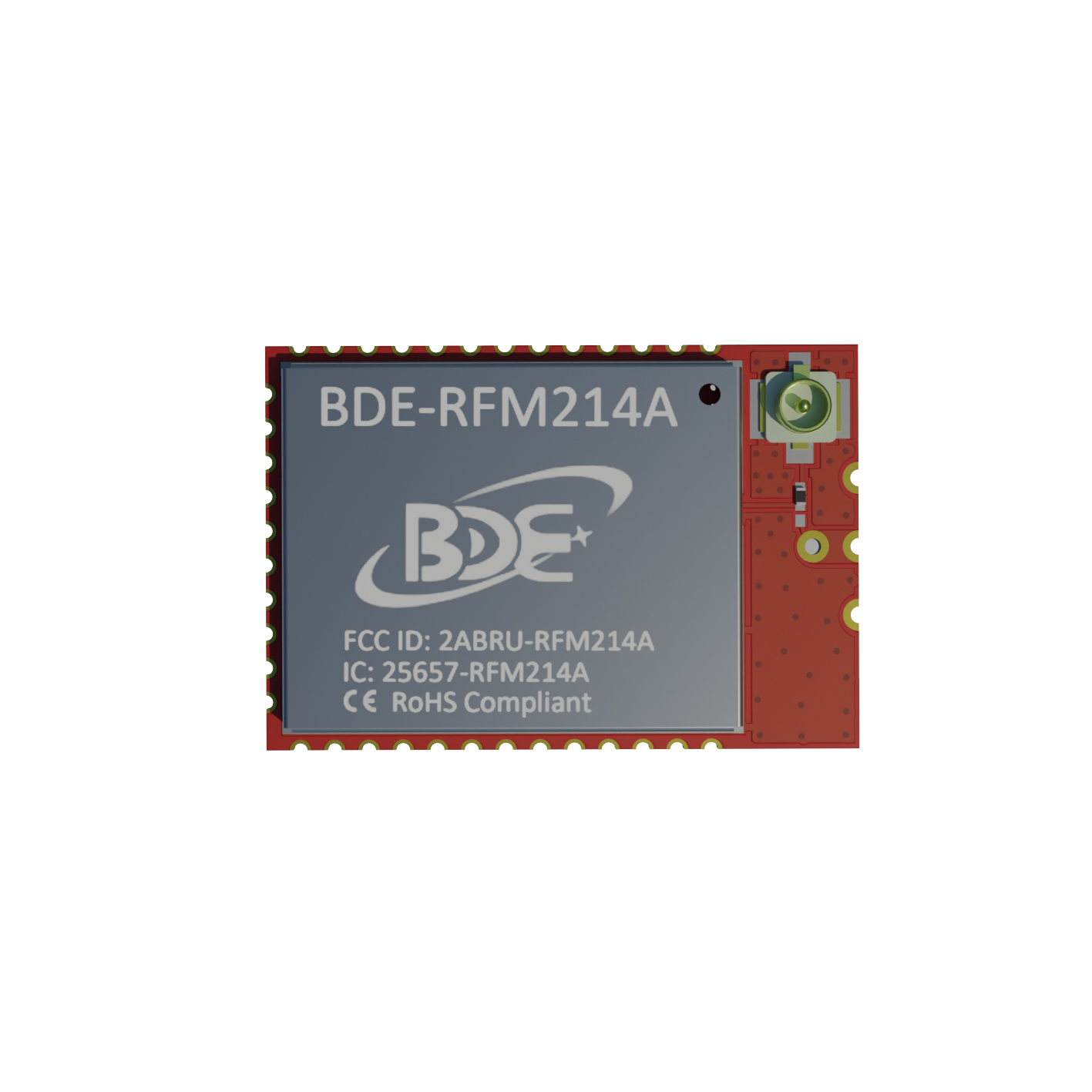

BDE-RFM214A-915 |
U.FL connector for external antenna |
||
|
BDE-RFM214A-868 |
|||
|
BDE-RFM214A-433
|
|
芯片组 |
CC1310 |
|
协议 |
Sub-1G |
|
天线类型 |
Antenna Not Included |
|
频率 |
Sub-1G |
|
发射功率 |
14dBm |
|
敏感度 |
–120 dBm for 2.5 kbps long-range mode |
|
类型 |
- |
|
内存(MB) |
256K |
|
外设 |
I2C |
|
工作温度 |
-40°C to +85°C |
|
包装尺寸 |
22 mm x 15 mm x 2.15 mm |
|
闪存 |
8K |
|
中央处理器 |
CC1310 |
|
系列状态 |
ACTIVE |
BDE-RFM2X4X is an ultra-low power, long-range Sub-1 GHz module series targeted at low power sensors and long range applications.
BDE-RFM2X4X integrates a high performance RF core and also a powerful ARM cortex-M3 processor, which makes it suitable for certain products that need high performance MCU to deal with difficult applications.
类型 |
标题 |
时间 |
|---|---|---|
数据手册 |
2026-03-11 |
|
数据手册 |
2026-03-11 |
|
数据手册 |
2026-03-11 |
