Orderable Part Number |
Connectivity |
Antenna Options |
Operating Temperature |
|
|

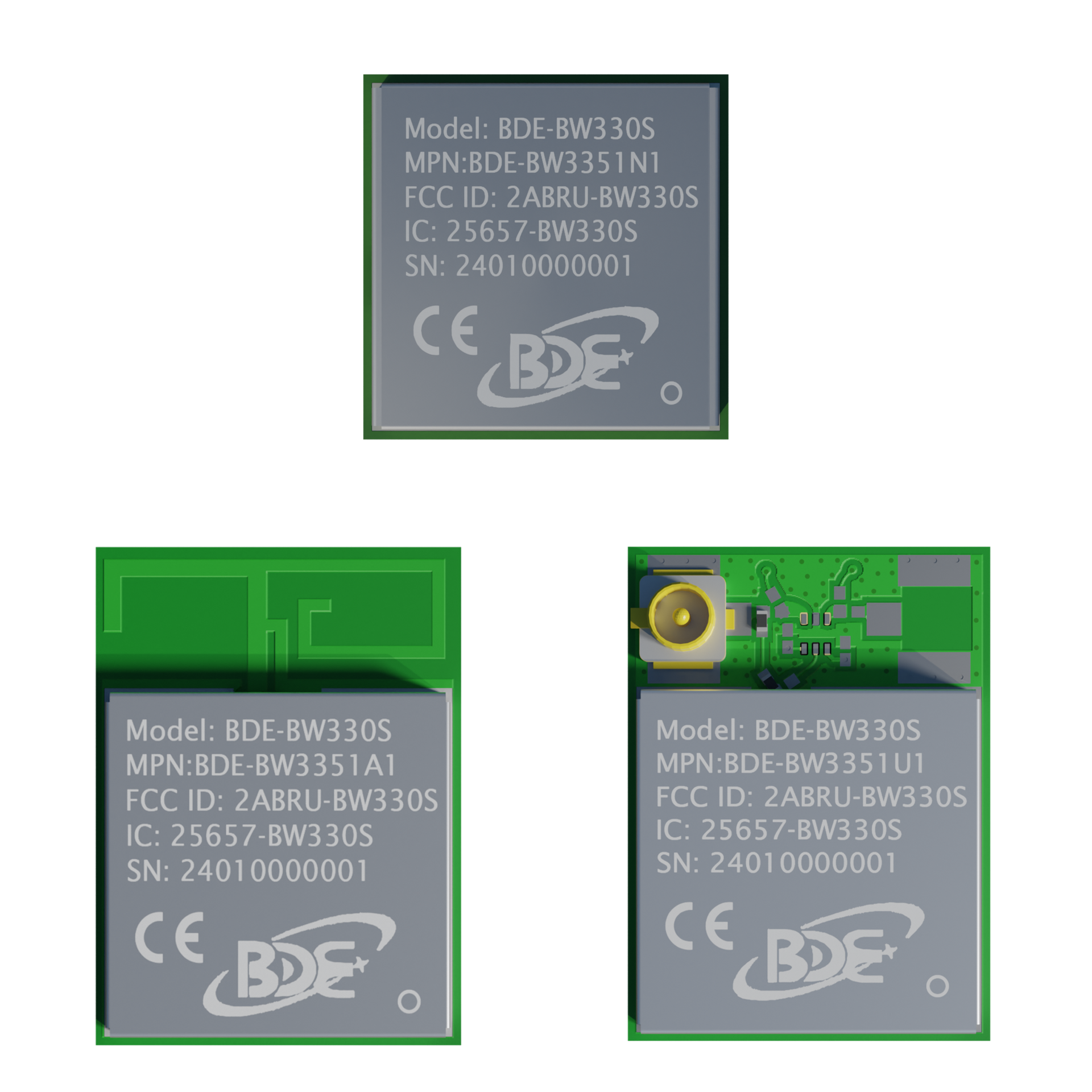

BDE-BW335S |
BDE-BW3351N1 |
2.4-GHz & 5-GHz Wi-Fi 6 SISO & BLE 5.4 |
ANT pin |
-40 °C to +85 °C |
|
BDE-BW3351U1 |
U.FL connector |
|||
|
BDE-BW3351A1 |
PCB trace antenna |
|||
|
BDE-BW3351N1-IN |
ANT pin |
-40 °C to +105 °C |
||
|
BDE-BW3351U1-IN |
U.FL connector |
|||
|
BDE-BW3351A1-IN |
PCB trace antenna |
|
芯片组 |
CC3351 |
|
协议 |
2.4G |
|
天线类型 |
ANT pin |
|
频率 |
- |
|
发射功率 |
20dBm |
|
敏感度 |
-73.5dBm |
|
类型 |
无线模组 |
|
内存(MB) |
512K |
|
外设 |
I2C |
|
工作温度 |
-40°C to +105°C |
|
包装尺寸 |
LGA-64, 13.3-mm x 13.4-mm x 2-mm |
|
闪存 |
12K |
|
中央处理器 |
CC3351 |
|
系列状态 |
ACTIVE |
BDE-BW3351x1 are 2.4-GHz and 5-GHz Dual-Band Wi-Fi 6 and Bluetooth Low Energy Combo wireless module based on TI’s 10th generation connectivity combo chip CC3351 which are based upon proven technology and complements the TI integrated devices for connectivity portfolio. These modules are ideal for use in cost sensitive embedded applications with a Linux or RTOS host running TCP/IP, where the peak throughput requirement is 50 Mbps maximum at the IP layer. BDE-BW3351xPx could be the best choice for bringing the efficiency of Wi-Fi 6 to embedded device applications with a small PCB footprint and highly optimized bill of materials with lower cost.
