芯片组 |
CC3351 |
|
协议 |
2.4G |
|
天线类型 |
ANT pin |
|
频率 |
- |
|
发射功率 |
20dBm |
|
敏感度 |
-73.5dBm |
|
类型 |
无线模组 |
|
内存(MB) |
512K |
|
外设 |
I2C |
|
工作温度 |
-40°C to +85°C |
|
包装尺寸 |
22 mm x 30 mm x 2.8 mm |
|
闪存 |
12K |
|
中央处理器 |
CC3351 |
|
系列状态 |
ACTIVE |

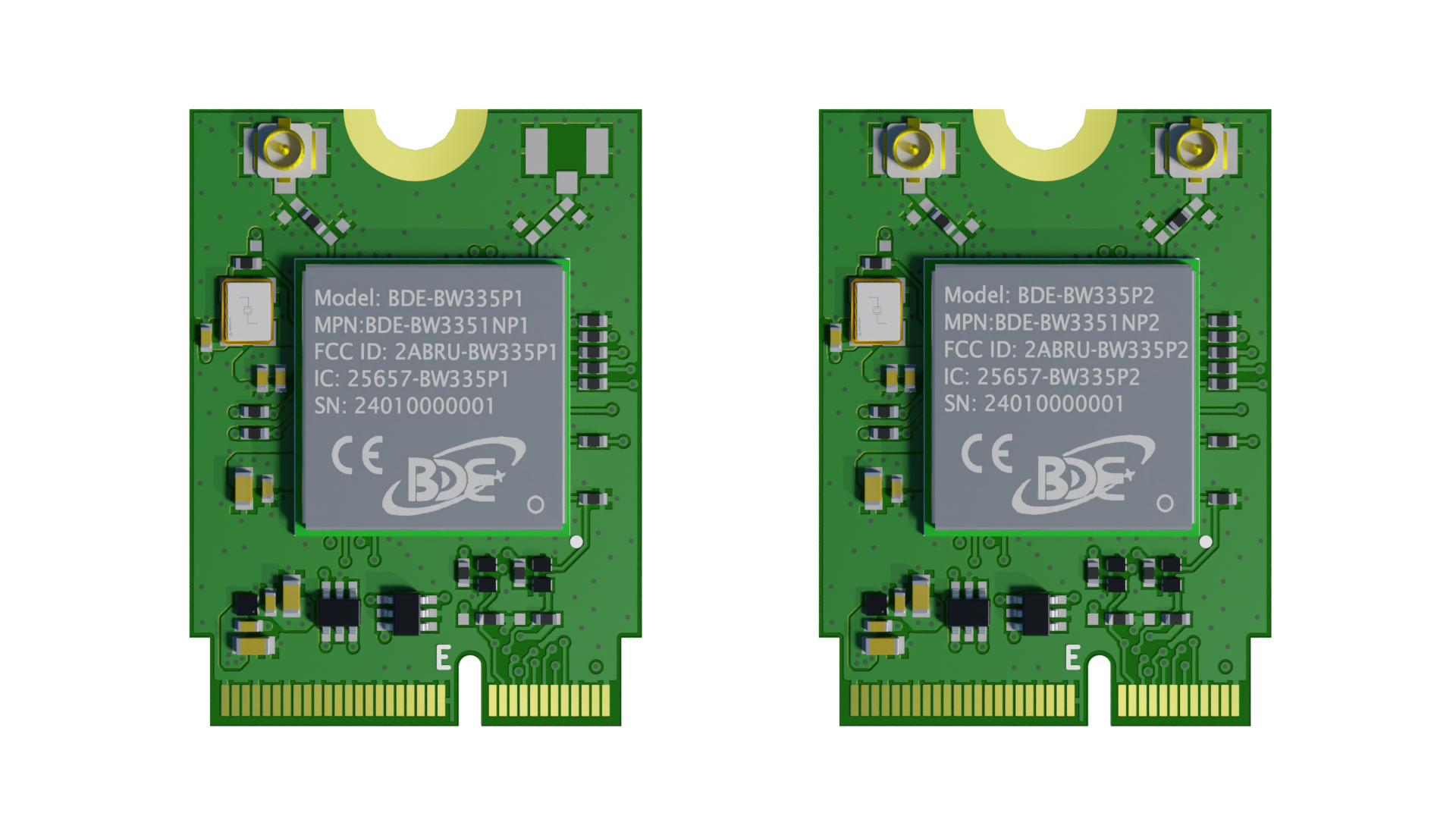

BDE-BW3351NPxM2 are 2.4-GHz Wi-Fi 6 and Bluetooth Low Energy Combo wireless M.2 card based on TI’s 10th generation connectivity combo chip CC3351 which is based upon proven technology and complements the TI integrated devices for connectivity portfolio. These modules are ideal for use in cost sensitive embedded applications with a Linux or RTOS host running TCP/IP, where the peak throughput requirement is 50 Mbps maximum at the IP layer. BDE-BW3351NPxM2 could be the best choice for bringing the efficiency of Wi-Fi 6 to embedded device applications with a small PCB footprint and highly optimized bill of materials with lower cost. These modules integrates a BDE module (BDE-BW3351NP1 or BDE-BW3351NP2) on board, and provides a PCI Express M.2 interface to user, which is 2230 Key-E M.2 interface. It is designed for ease of use and integration to the embedded systems.
