Orderable Part Number |
Connectivity |
Antenna Options |
Operating Temperature |
|
|

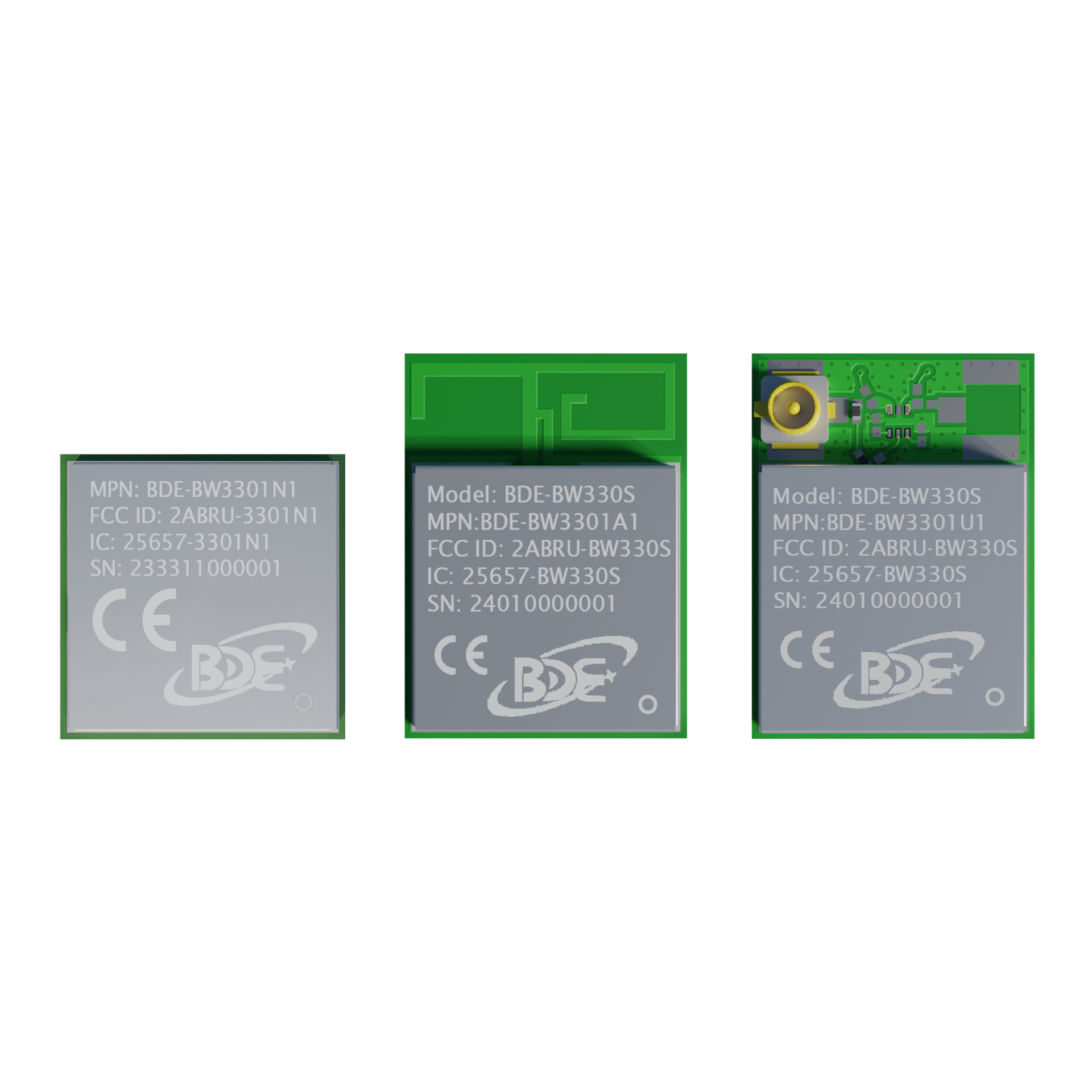

BDE-BW330S |
BDE-BW3301N1 |
2.4-GHz & 5-GHz Wi-Fi 6 SISO & BLE 5.4 |
ANT pin |
-40 °C to +85 °C |
|
BDE-BW3301U1 |
U.FL connector |
|||
|
BDE-BW3301A1 |
PCB trace antenna |
|||
|
BDE-BW3301N1-IN |
ANT pin |
-40 °C to +105 °C |
||
|
BDE-BW3301U1-IN |
U.FL connector |
|||
|
BDE-BW3301A1-IN |
PCB trace antenna |
|
芯片组 |
CC3301 |
|
协议 |
2.4G |
|
天线类型 |
ANT pin |
|
频率 |
- |
|
发射功率 |
20dBm |
|
敏感度 |
-73.5dBm |
|
类型 |
无线模组 |
|
内存(MB) |
512K |
|
外设 |
I2C |
|
工作温度 |
-40°C to +105°C |
|
包装尺寸 |
65-QFM, 11-mm x 11-mm x 2-mm |
|
闪存 |
12K |
|
中央处理器 |
CC3301 |
|
系列状态 |
ACTIVE |
BDE-BW3301x1 is a 2.4-GHz Wi-Fi 6 and Bluetooth Low Energy 5.4 combo wireless module series based on TI’s CC3301. This module series is ideal for cost-sensitive embedded applications with a Linux or RTOS host running TCP/IP, where the peak application throughput requirement is a maximum of 50 Mbps and also has requirement for BLE connectivity. The BDE-BW3301x1 module series is an excellent choice for bringing the efficiency of Wi-Fi 6 to embedded device applications, featuring a small PCB footprint and a highly optimized bill of materials for lower costs. Additionally, the module is backward compatible with Wi-Fi 4 (802.11 b/g/n) and Wi-Fi 5 (802.11 ac).
