产品明细

模块变体参数描述

Series Name	Orderable Part Number	Connectivity	Antenna Options	Operating Temperature
BDE-BDM209X	BDE-BDM209A	2.4-GHz	Chip antenna	-40 °C to +85 °C

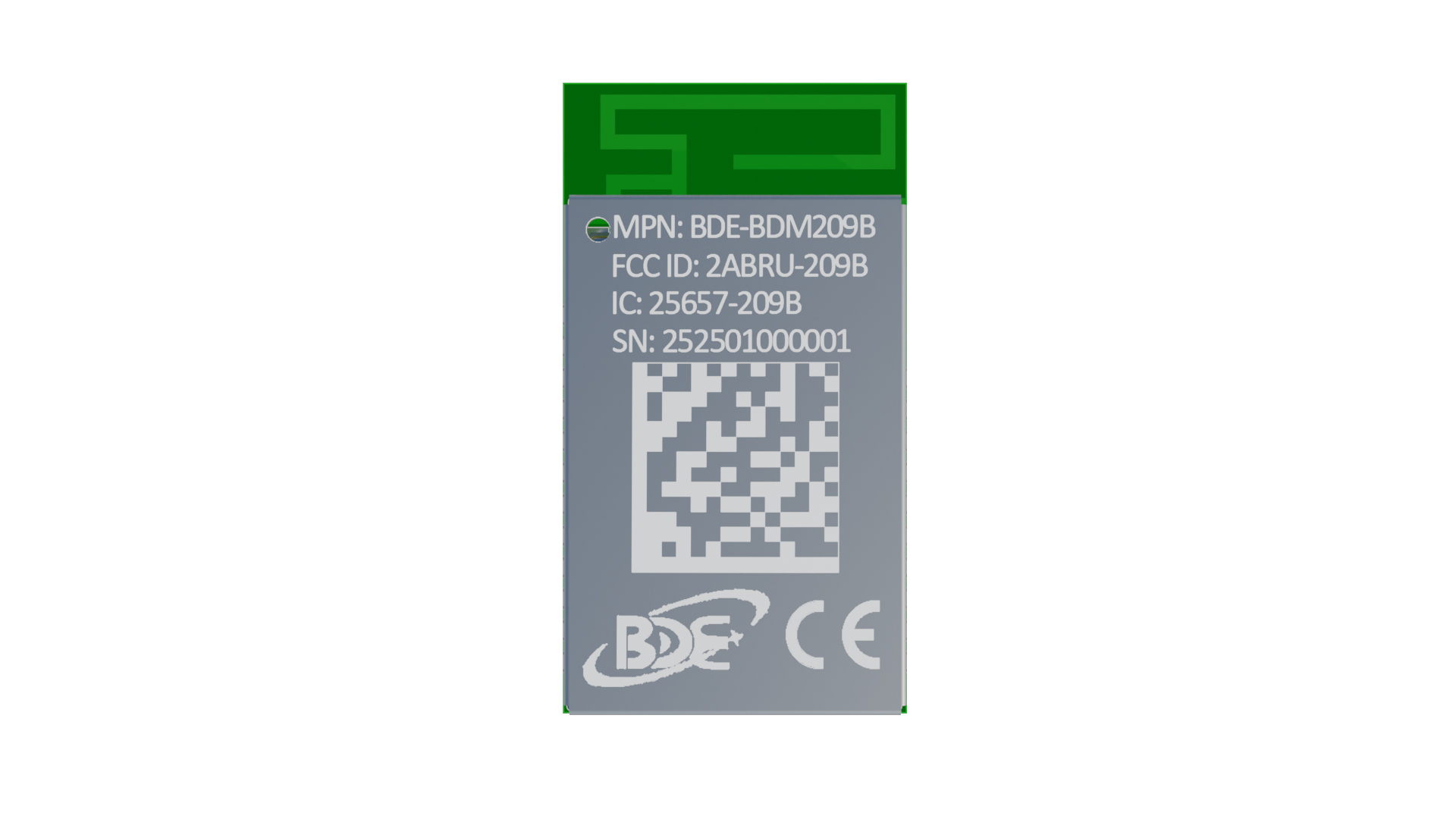

BDE-BDM209X	BDE-BDM209B	2.4-GHz	Integrated PCB trace antenna	-40 °C to +85 °C

芯片组	CC2564C&MSP432 CC2564C&STM32L431
协议	蓝牙
天线类型	Chip antenna PCB Trace Antena
频率	2.4G
发射功率	10dBm
敏感度	-93dBm
类型	-
内存(MB)	64K
外设	I2C SPI UART I2S
工作温度	-40°C to +85°C
包装尺寸	LCC-29:12 mm x 22 mm x 2.1 mm
闪存	256K
中央处理器	CC2564C
系列状态	ACTIVE

BDE-BDM209x is a Bluetooth 5.1 BR/EDR & Bluetooth 5.1 Low Energy Dual Mode module series.

The module offers a unique combination of Bluetooth® classic and Bluetooth Low Energy radio TI’s CC2564C and an ARM 32-bit Cortex-M4F CPU MSP432 or STM32L431, with integration of all external components including antenna at a very affordable cost.

The module provides the best-in-class RF performance with transmit power and receive sensitivity that provides twice the range and higher throughput than other Bluetooth-low-energy-only solutions. The power-management hardware and software algorithms provide significant power savings in all commonly used Bluetooth® BR/EDR and low energy modes of operation.

The certified and royalty free Dual-mode Bluetooth® 5.1 protocol stack software provides a complete Bluetooth® BR/EDR, and Bluetooth Low Energy sample applications that reduce design effort and ensure a faster time to market.

文档

类型	标题	时间
数据手册	BDE-BDM209A_Datasheet_V1.4.pdf	2026-03-10
数据手册	BDE-BDM209B_Datasheet_V0.3.pdf	2026-03-10
