芯片组 |
CC2564C |
|
协议 |
蓝牙 |
|
天线类型 |
Antenna Not Included |
|
频率 |
2.4G |
|
发射功率 |
8dBm |
|
敏感度 |
- |
|
类型 |
- |
|
内存(MB) |
- |
|
外设 |
I2C |
|
工作温度 |
-40°C to +85°C |
|
包装尺寸 |
7 mm x 14 mm x 1.55 mm (With Shield) |
|
闪存 |
- |
|
中央处理器 |
CC2564C |
|
系列状态 |
ACTIVE |

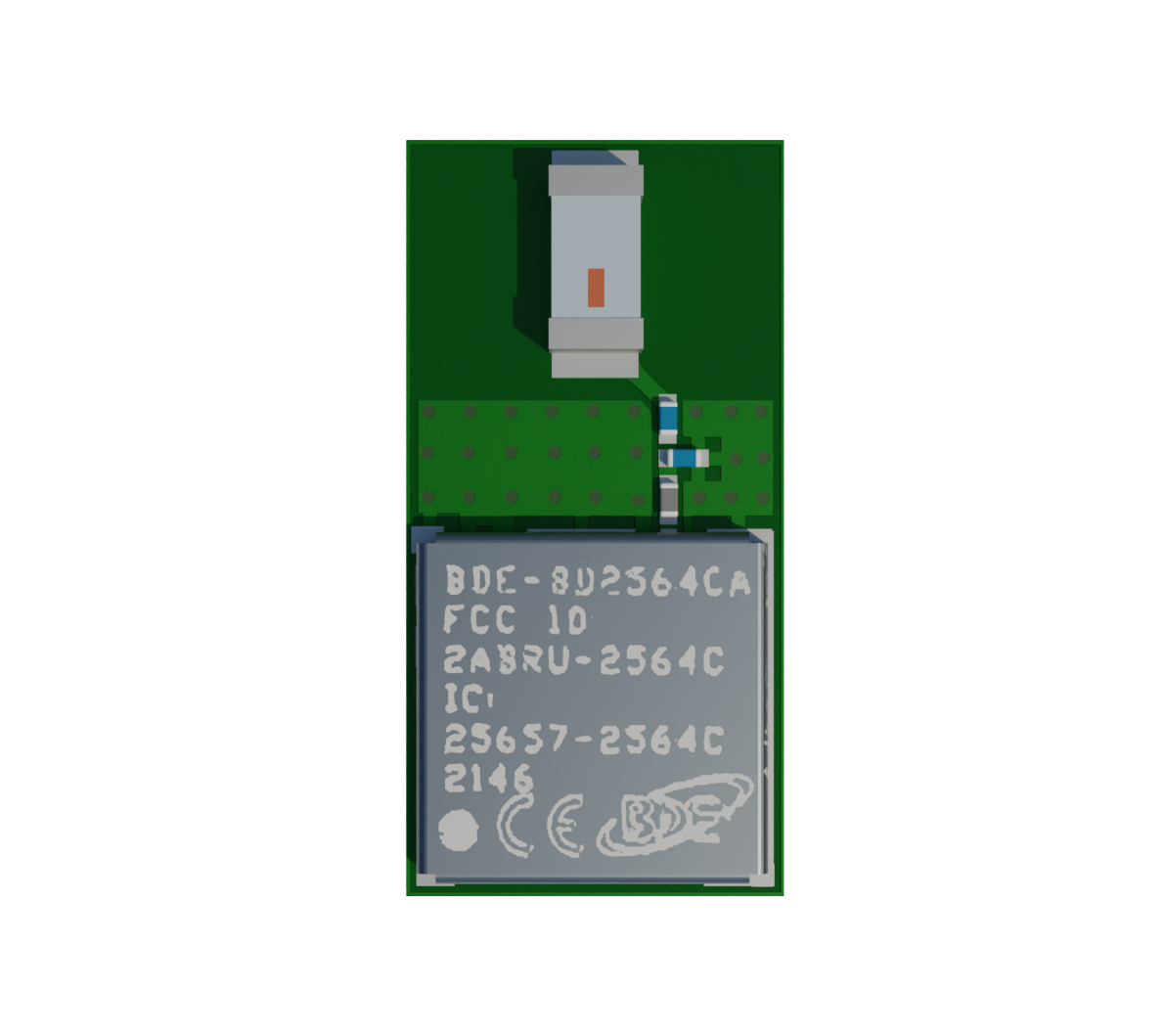

BDE-BD2564CX is a Bluetooth 5.1 BR/EDR & LE dual mode transceiver module series.The module integrates Bluetooth classic and Bluetooth Low Energy radio TI’s CC2564C, a 26-MHz crystal oscillator, a band pass filter and all the passive components at a very affordable cost.The module provides the best-in-class RF performance with transmit power and receive sensitivity that provides twice the range and higher throughput than other Bluetooth-low-energy-only solutions. The power-management hardware and software algorithms provide significant power savings in all commonly used Bluetooth BR/EDR and low energy modes of operation.The certified and royalty free Dual-mode Bluetooth 4.2 protocol stack software provides a complete Bluetooth BR/EDR, and Bluetooth Low Energy sample applications that reduce design effort and ensure a faster time to market.
